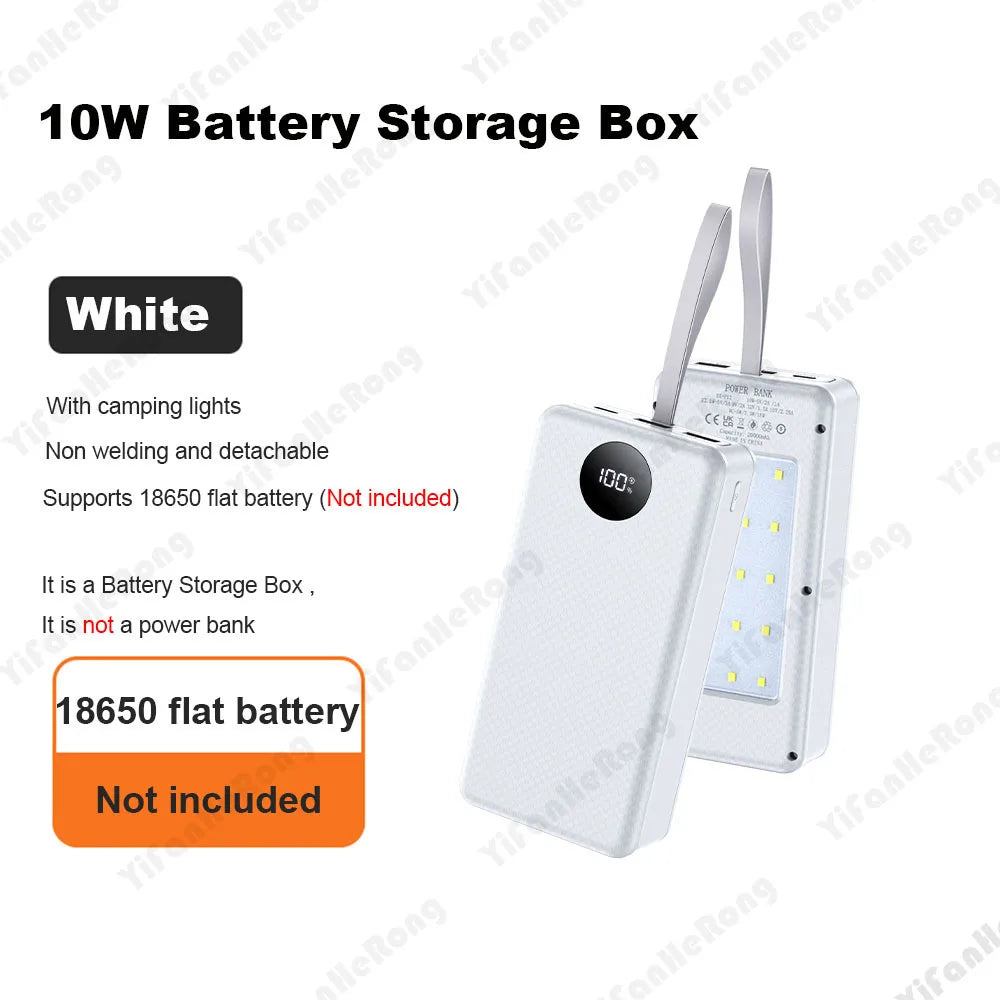

PowerCore 12-Slot DIY Bank Shell

NOTE

Battery not included !!!
only DIY battery box !!!
There are THREE versions available. Please carefully confirm which version you need before making a purchase!!!

The PD QI version needs to be activated (after the battery is installed, the battery level is displayed as "0")

The activation step is as follows: After installing the battery, insert the data cable to link the battery box to activate. After activation, the battery power is normal.

THREE Versions

Normal Version: Max.10W/5V2A
PD Version: Max.22.5W

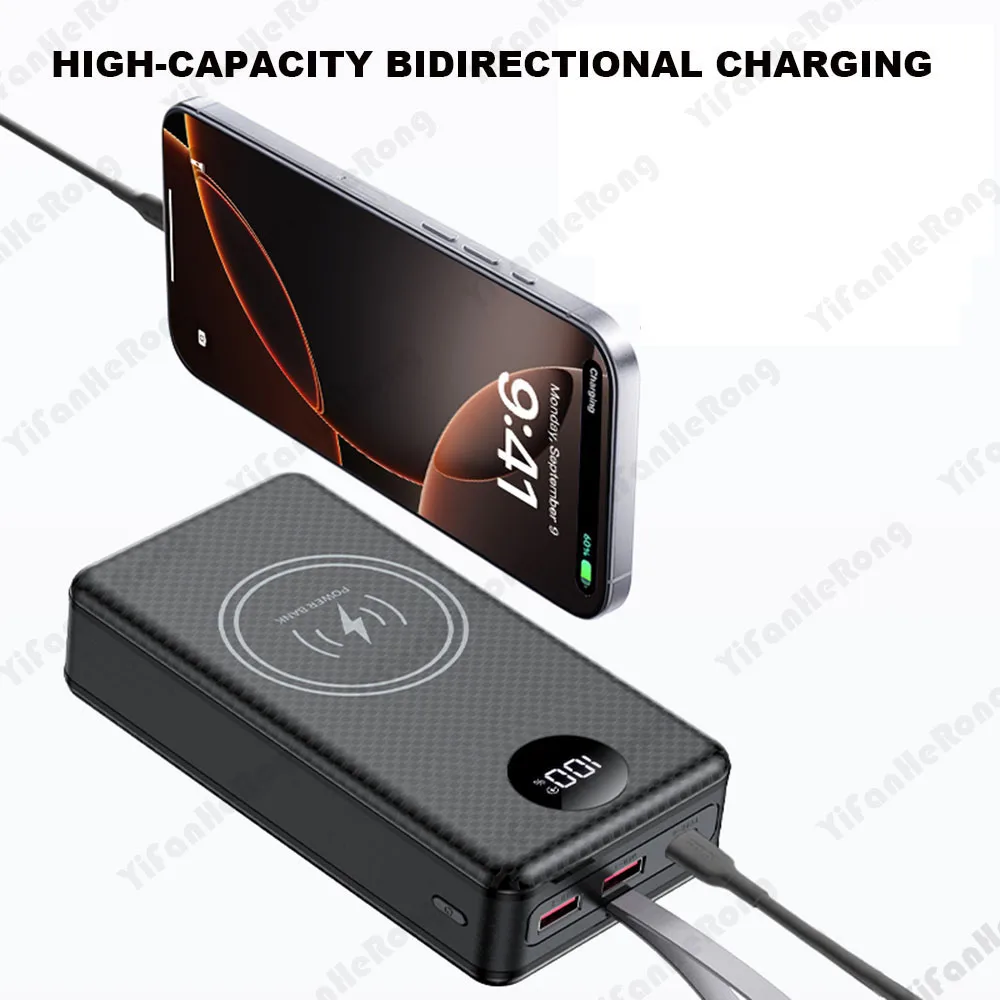

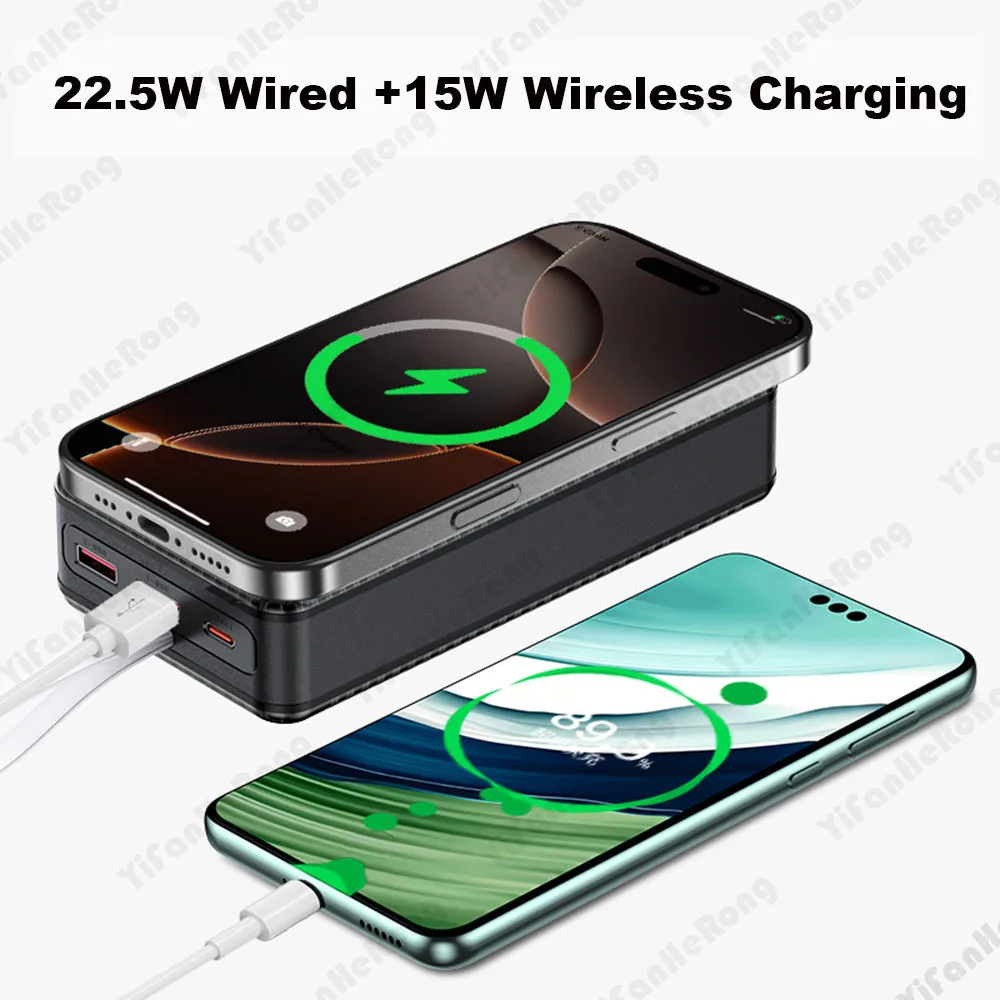

PD QI Version : PD Max.22.5W, QI Max.15W

Specification

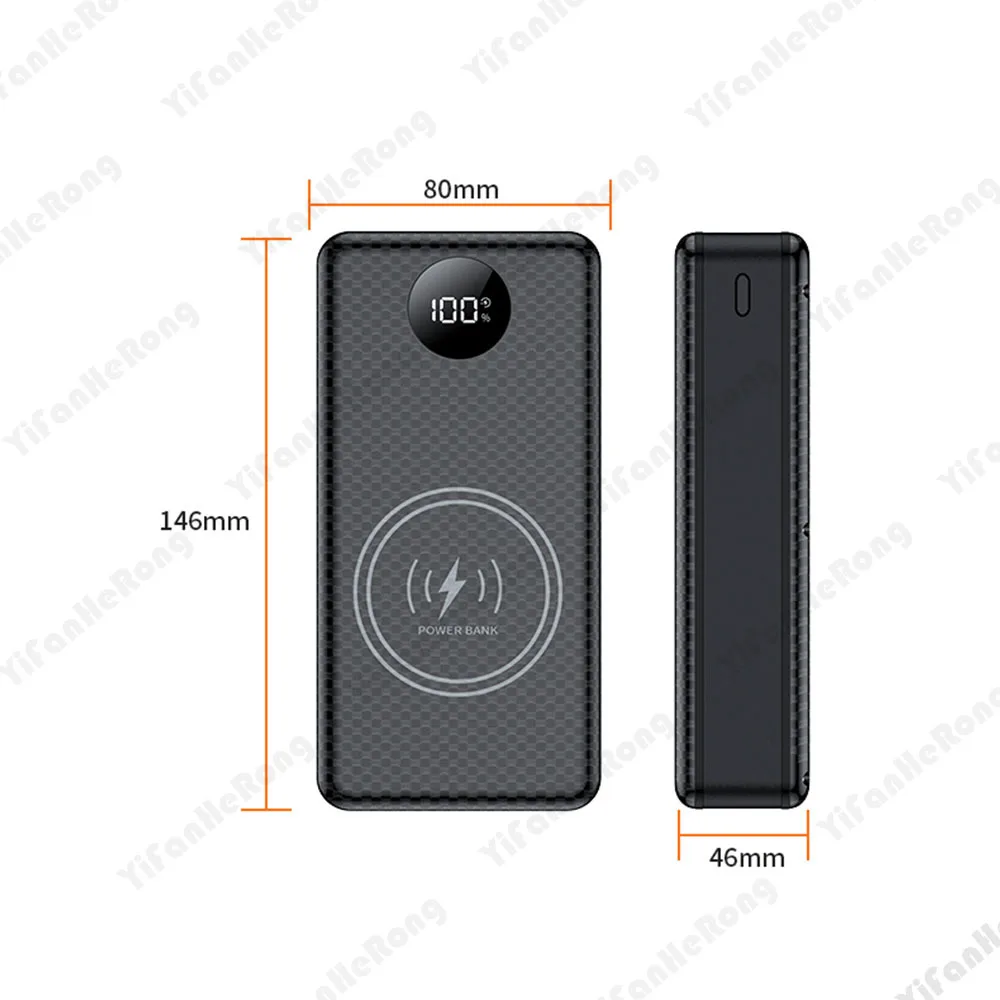

Size:146*80*46mm

Normal Version Maximum Power: 10W/5V2A(USB A output,Type C input）

PD Version Maximum Power:
USB A output: 5V/3A 9V/2A 12V/1.5A 10V/2.25A
Type C output: 5V/3A 9V/2.2A 12V/1.67A 10V/2.25A
USB A: fast charging protocol supports QC3.0/QC2.0/AFC/FCP/SCP.
Type-c: fast charging protocol supports PD3.0/PD2.0/QC3.0/QC2.0/AFC/FCP/SCP.
input: 5V/3A 9V/2A 12V/1.5A
Type-c: fast charging protocol supports PD3.0/PD2.0/AFC/FCP.
output: 5V/3A 9V/2A 12V/1.5A 10V/2.25A

PD QI Version Maximum Power:

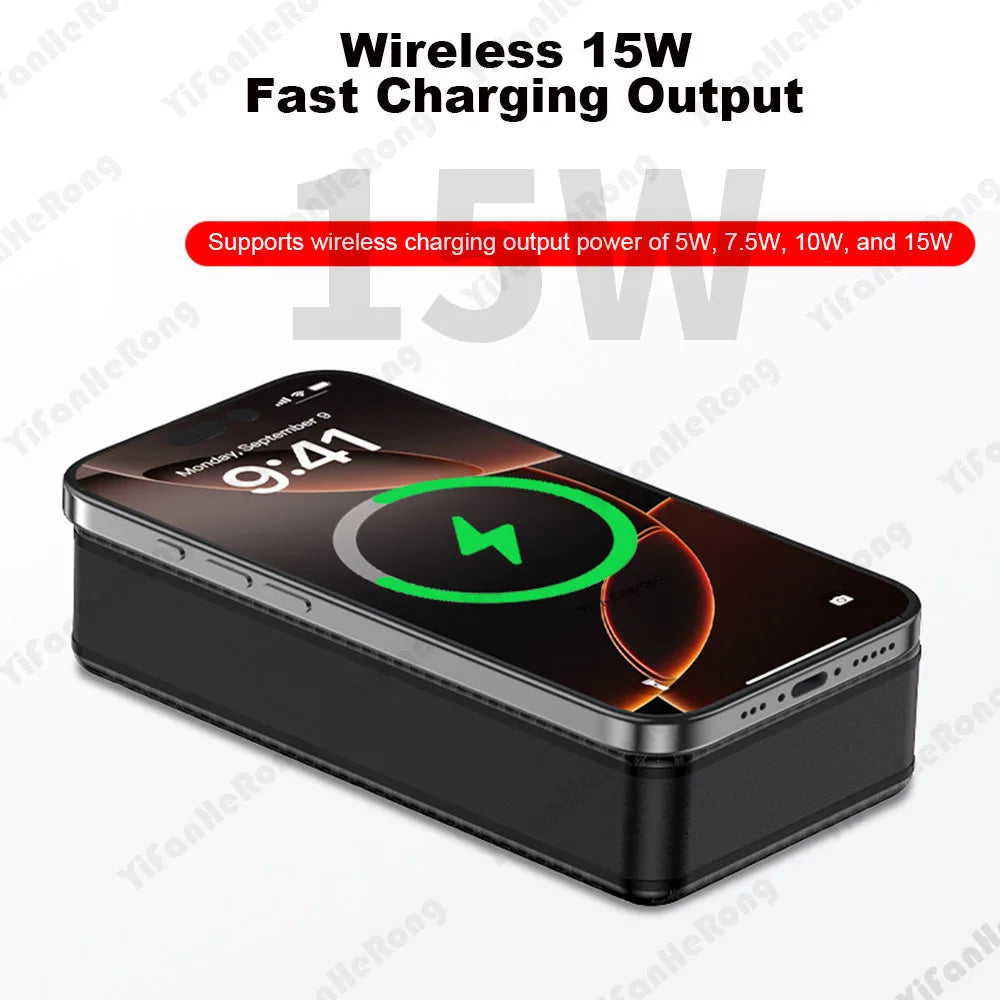

Wireless Charging :5W/7.5W/10W/15W

Feature

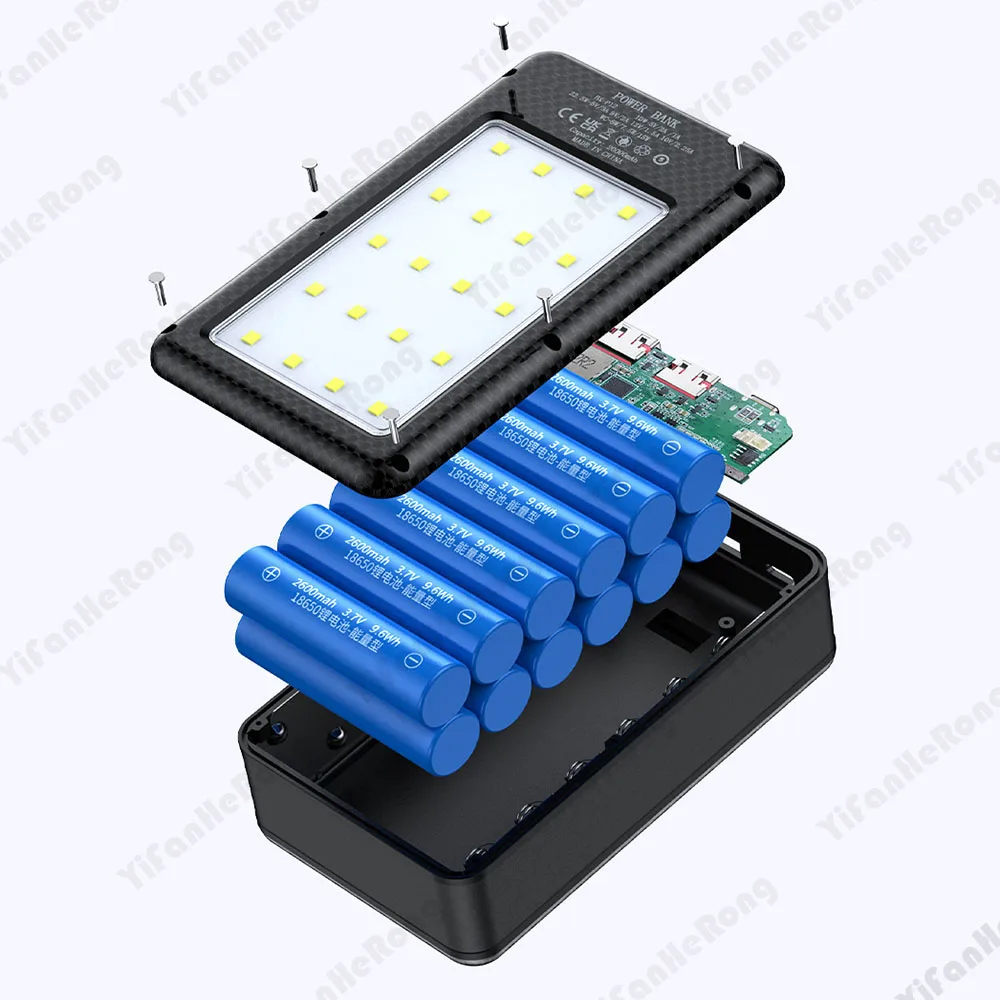

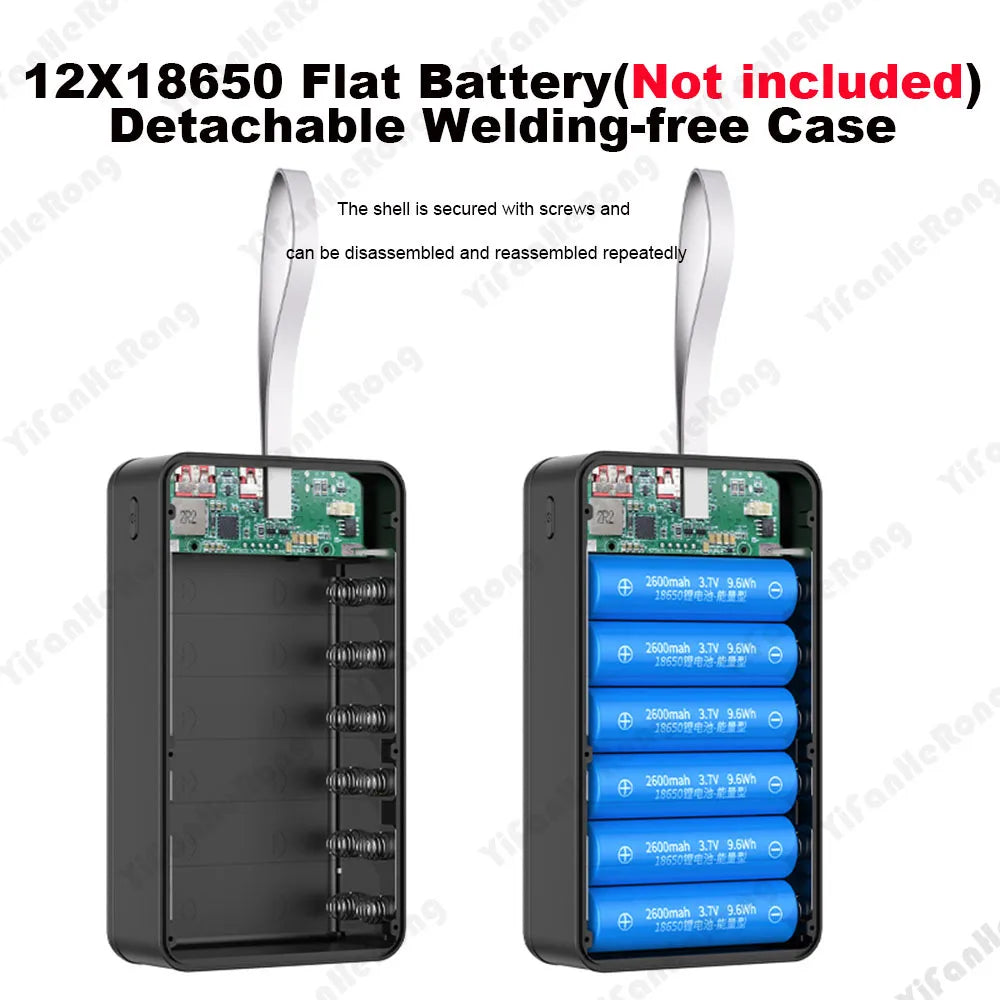

1. [Non welding and detachable] No need for secondary processing or welding, it can be used with 18650 batteries installed, convenient and fast. It is fixed with screws, detachable, and can replace batteries without damaging the casing.

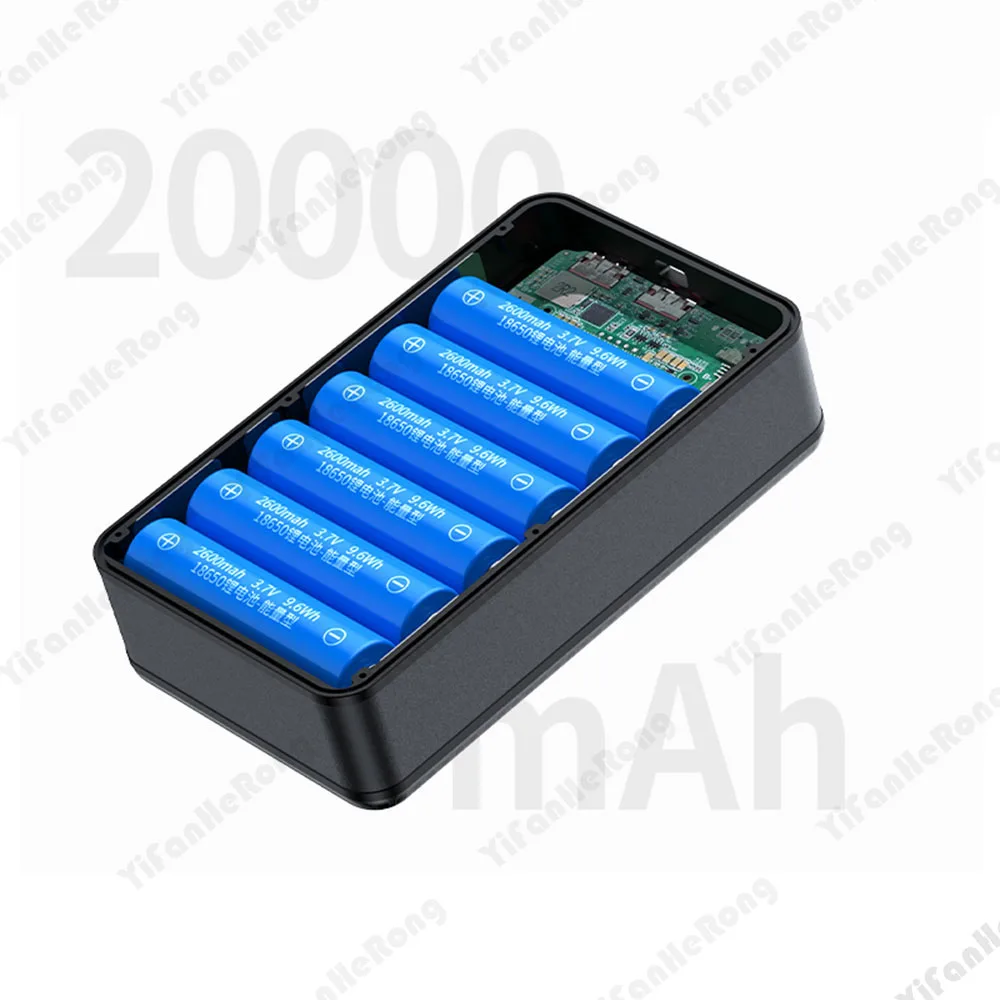

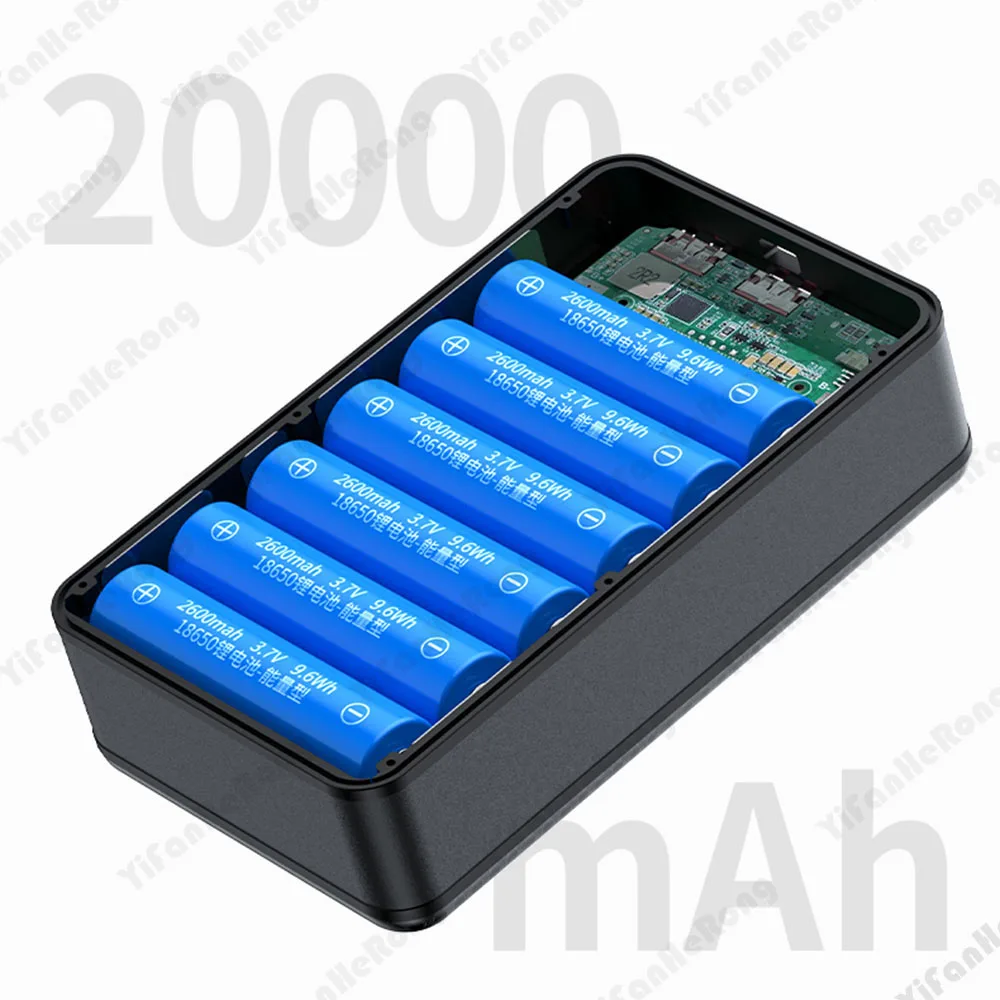

2. [Supports 18650 batteries] Can accommodate 12 * 18650 flat-head batteries(not included), with large capacity and longer battery life. (Note: The battery should pay attention to the reverse polarity of the positive electrode and avoid installation errors. Do not use inferior, damaged or old 18650 batteries. Instead, choose a new ternary lithium battery with the same capacity, which will provide more power and have a longer lifespan.)

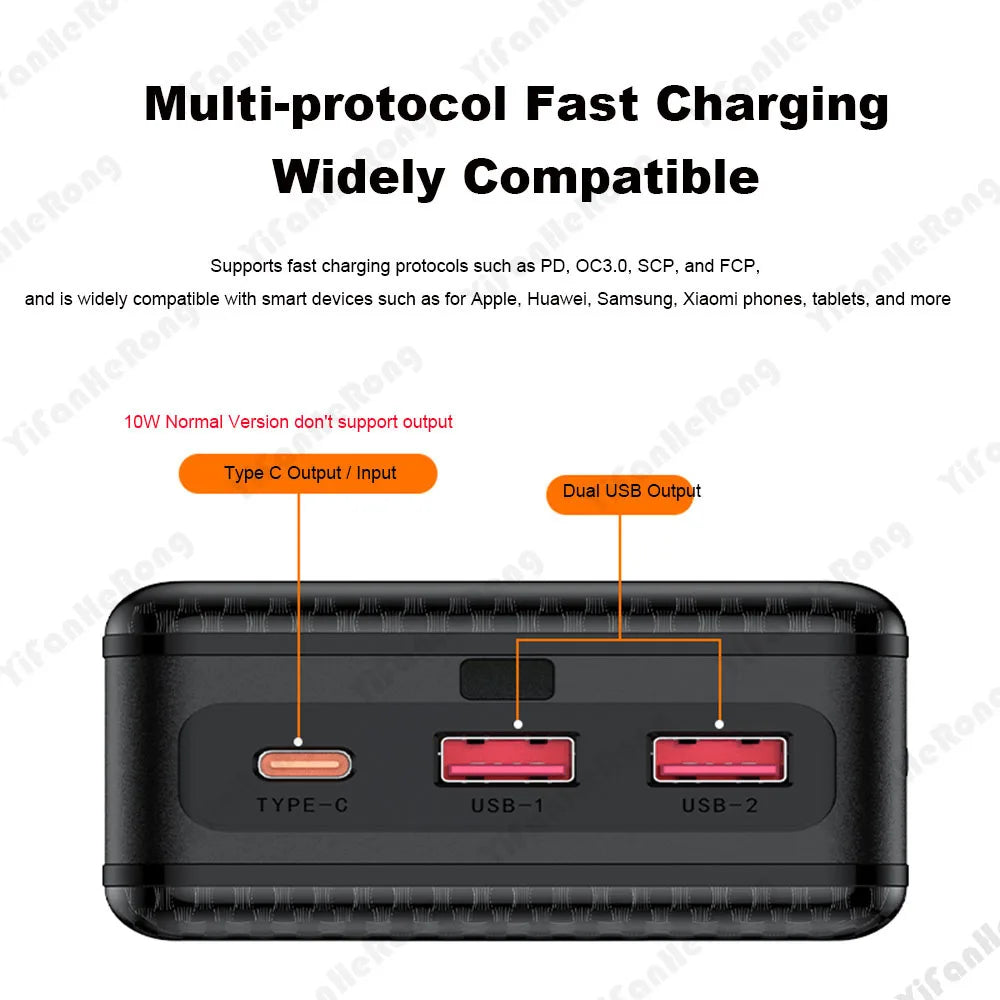

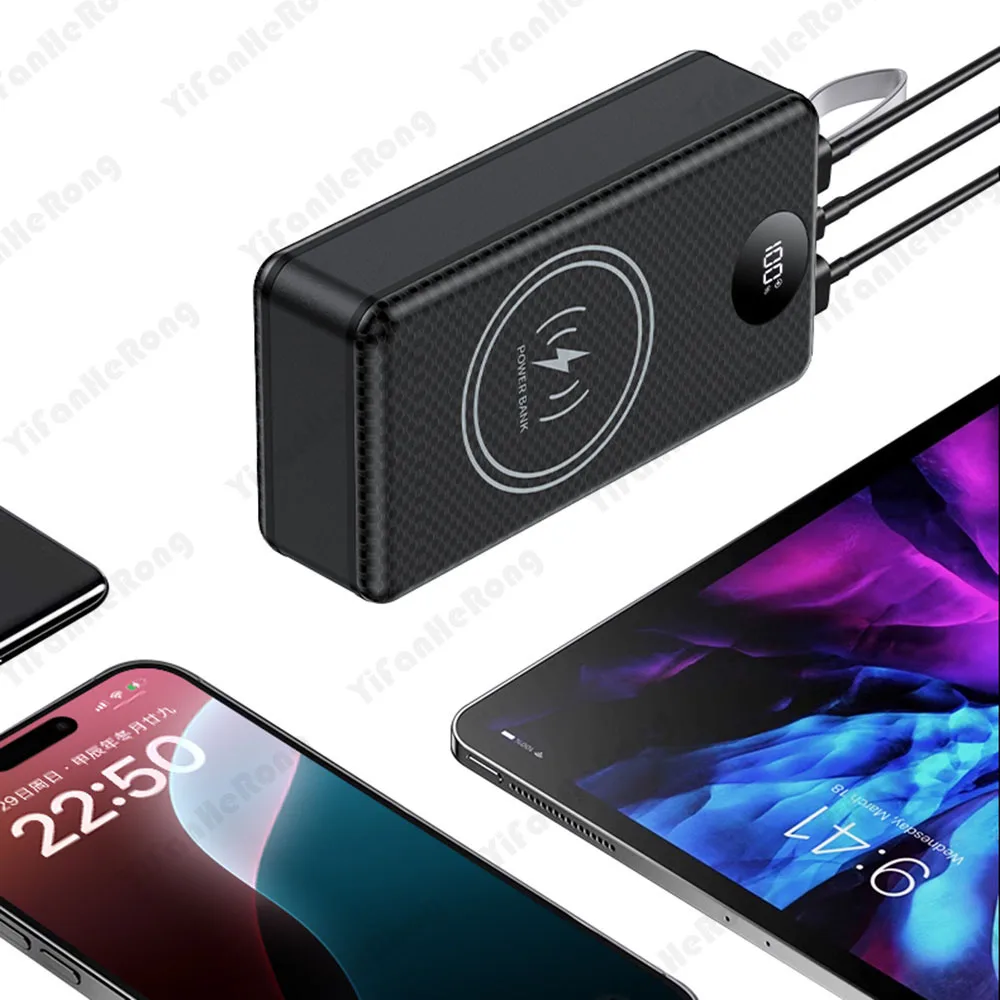

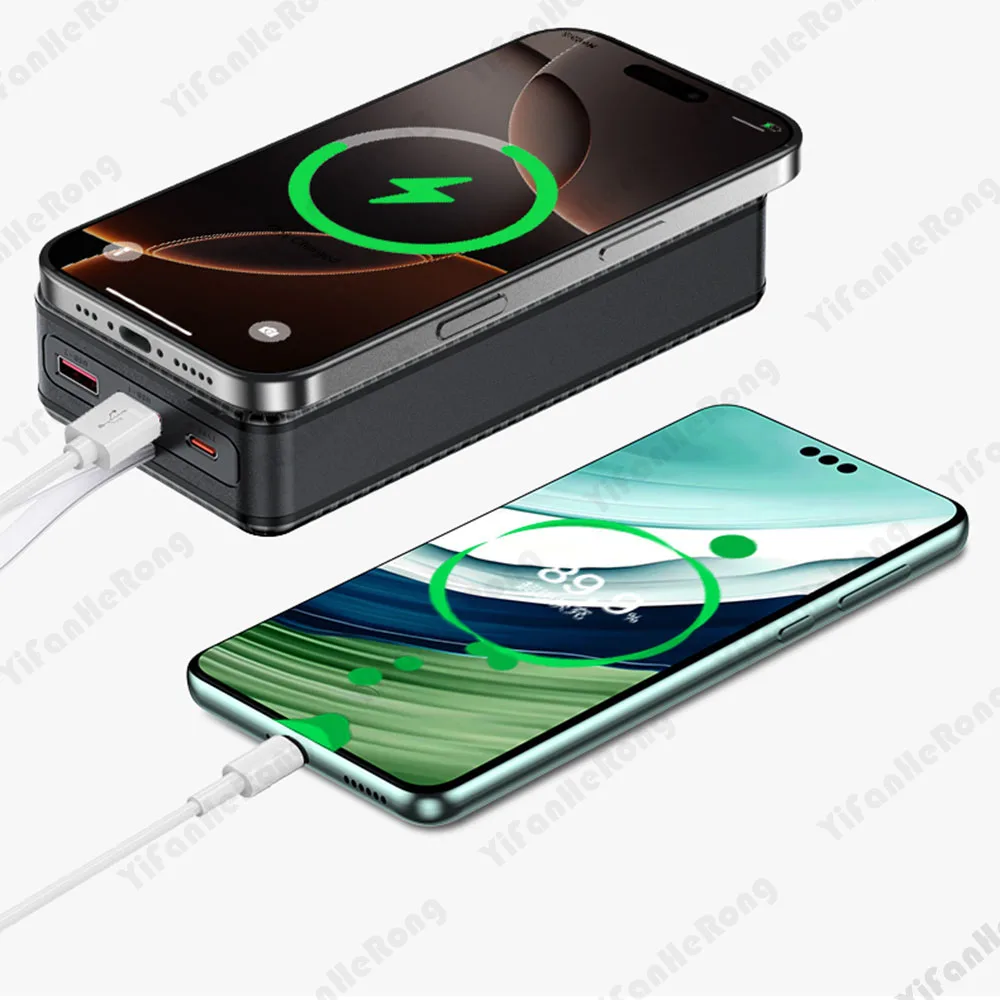

3. [Multi interface] 2 * USB interface+1 * TYPE-C interface, to meet the charging needs of multiple mobile phones.
4. [Suitable for multiple scenarios] Outdoor camping/sports/home use/going out/traveling/etc

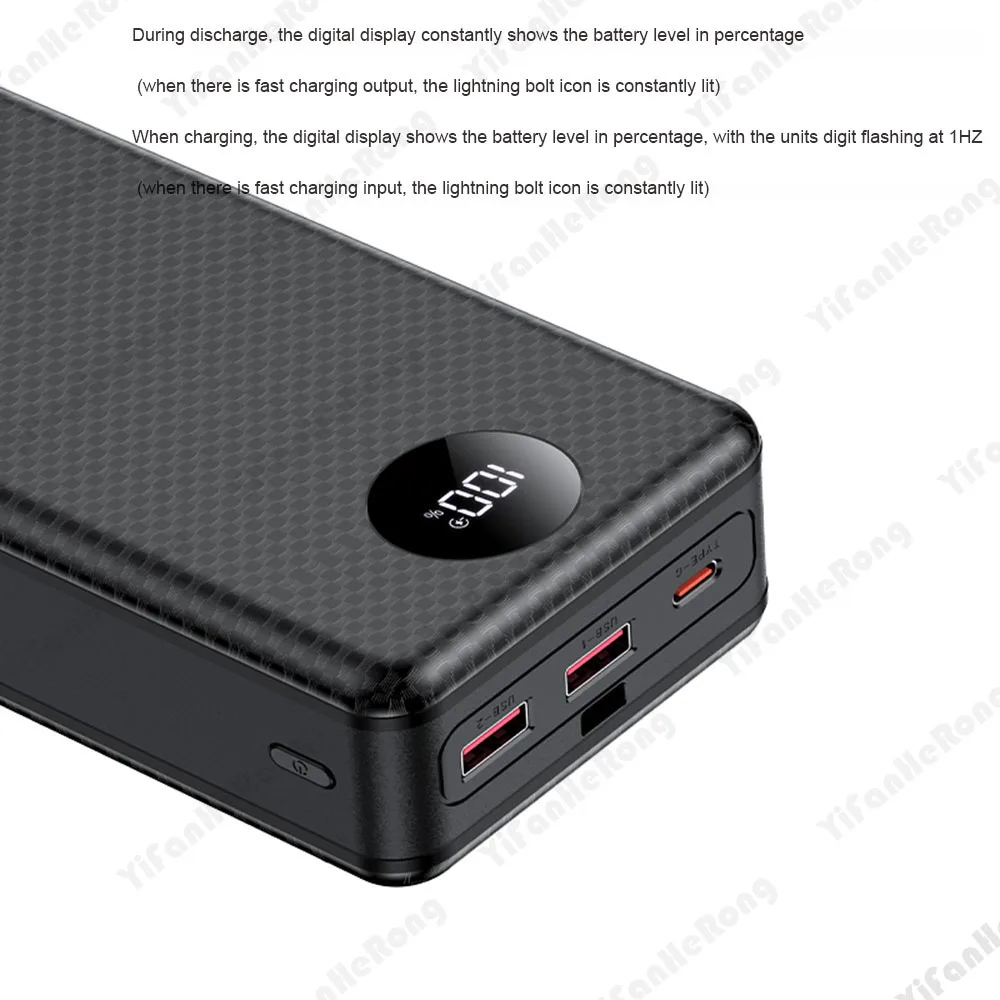

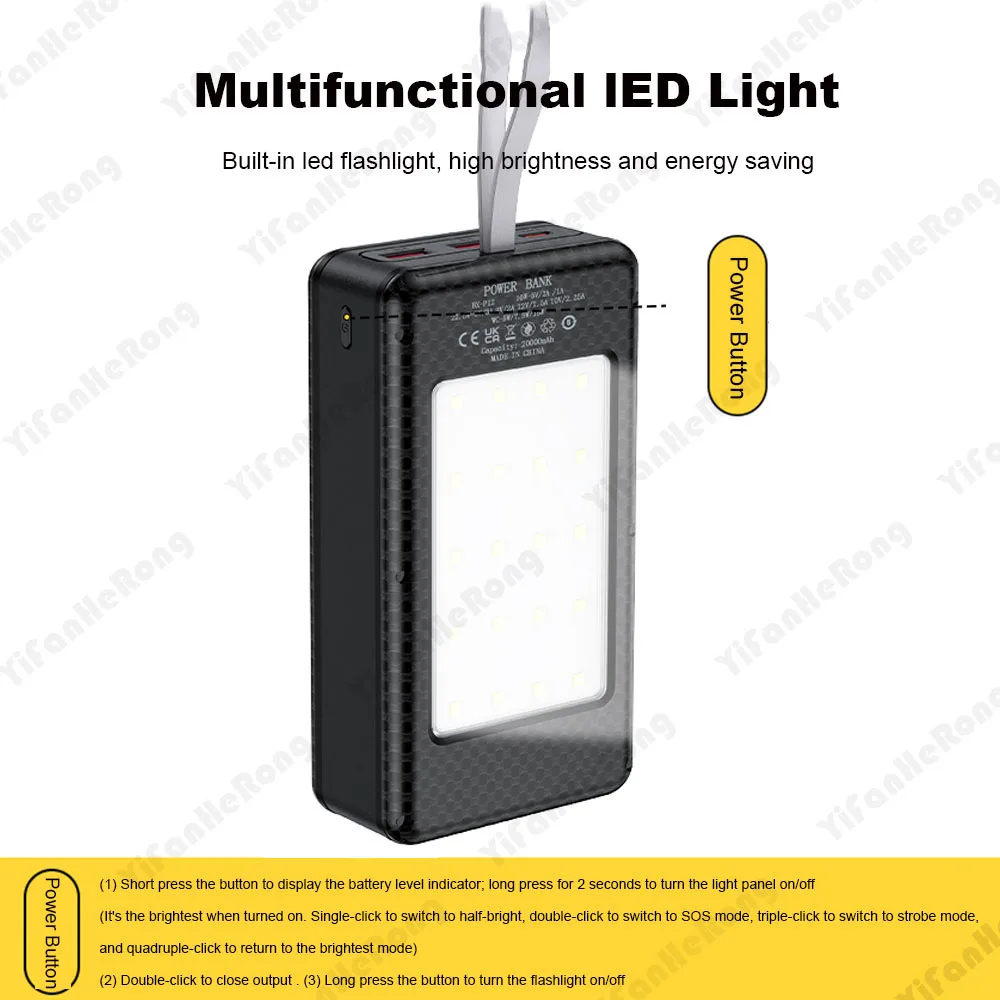

Power Button

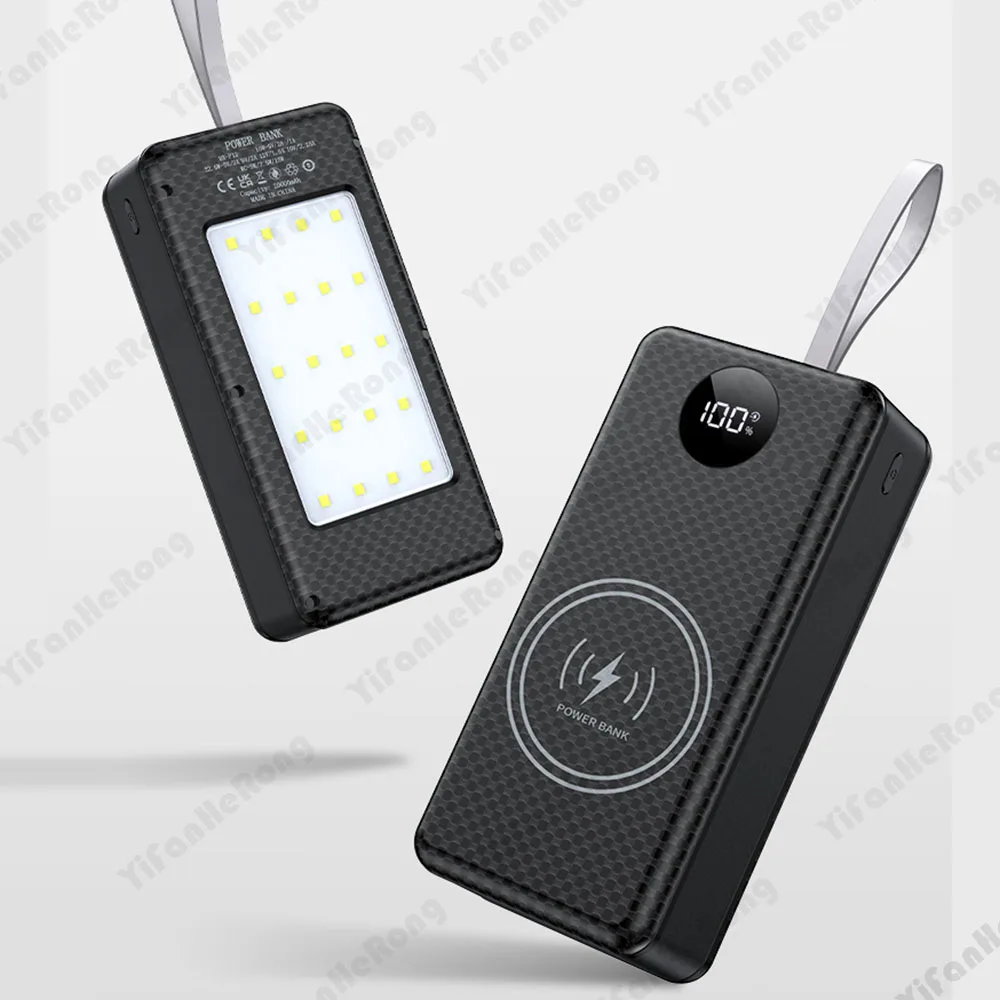

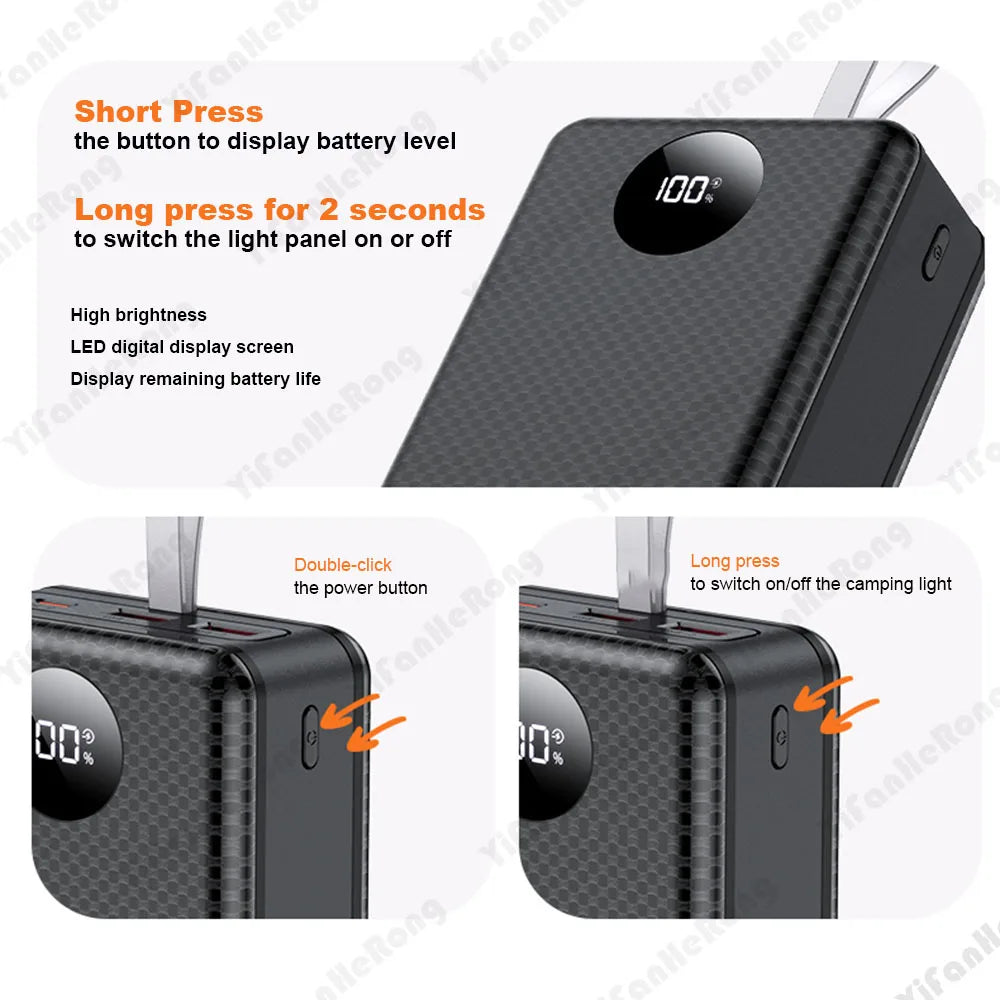

(1) Short press the button, the battery indicator light will display: Long press for 2 seconds to turn the light board on/off
(It is the brightest when turned on. Single click to switch to half-bright, double click to switch to SOS, triple click to switch to strobe mode, and quadruple click to switch back to the brightest)
(2) Double-click to close output
(3) Long press the button to turn on/off the flashlight

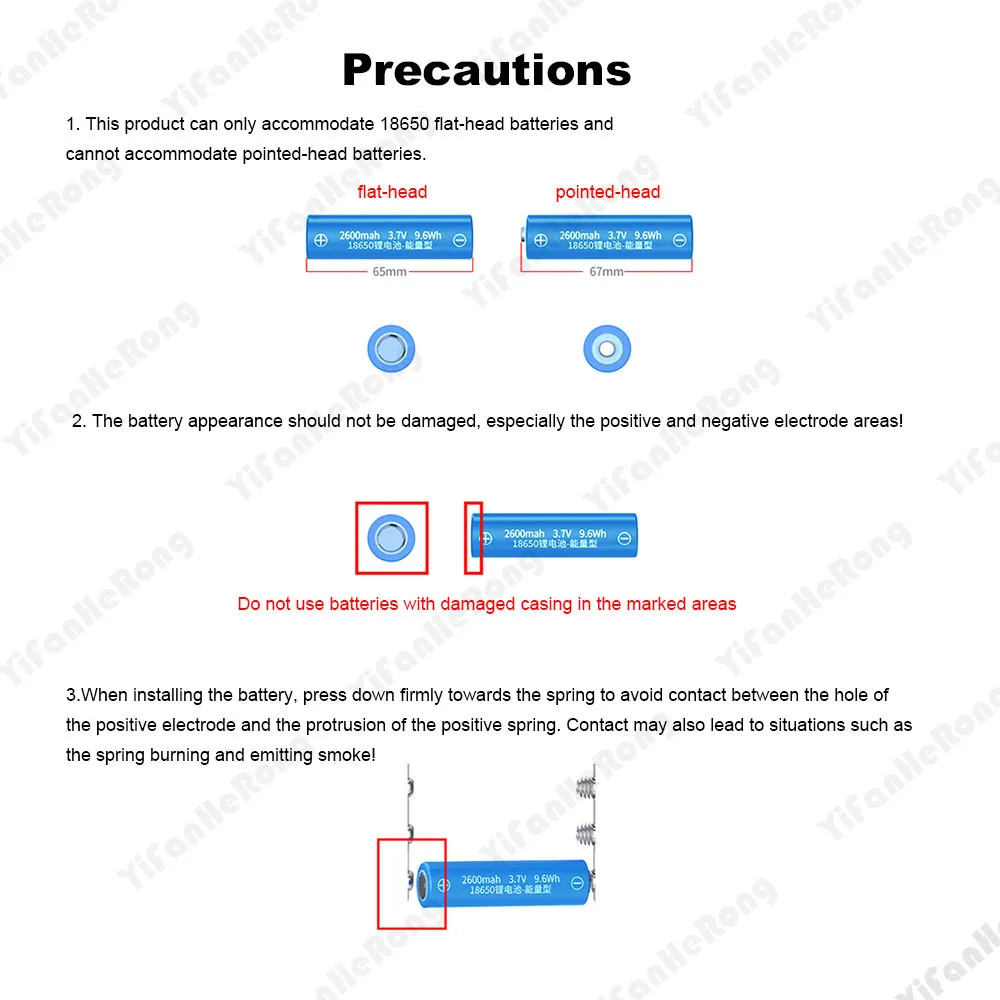

Precautions

1. The battery cannot be used if its outer skin is damaged.
2. Pointed batteries cannot be used, only flat batteries can be used.

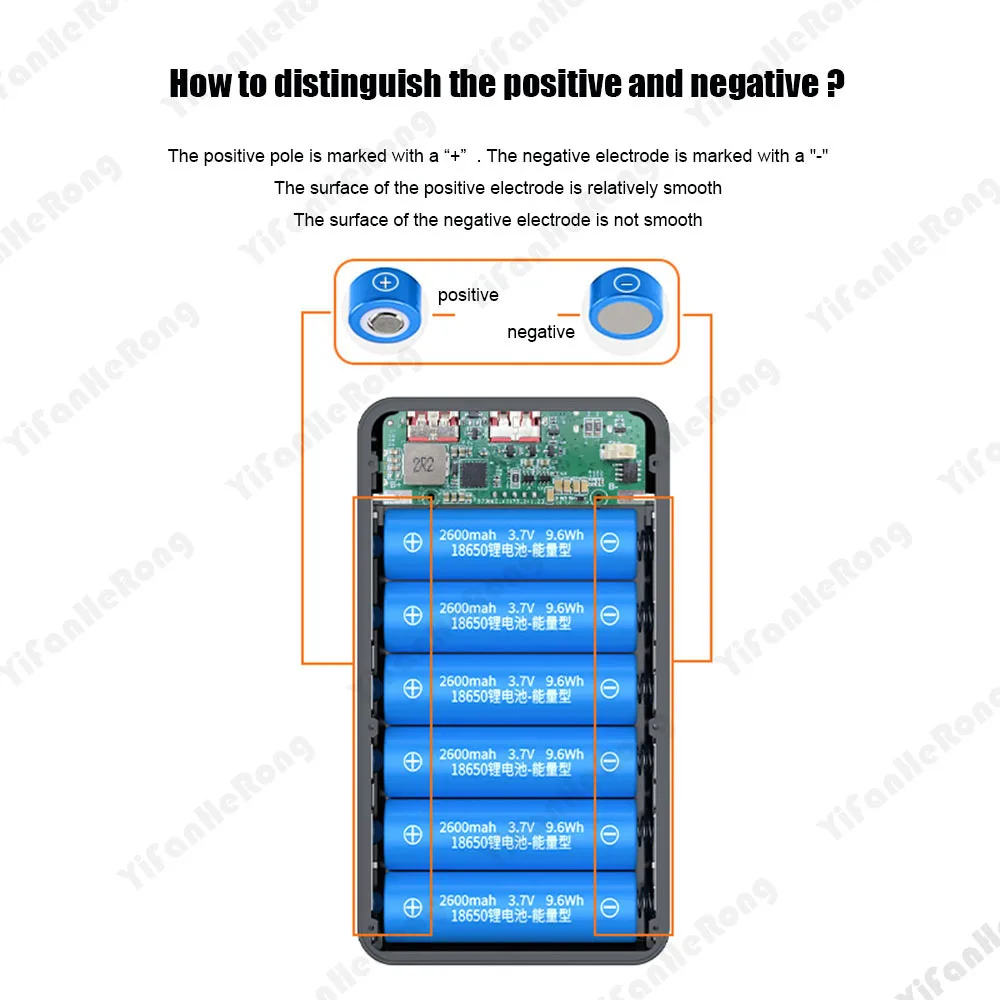

3. The positive and negative poles need to be placed and used correctly.
4. Do not use or store in a high temperature environment.

Package included

1x 18650 DIY Battery Box(Batteries not included)

Note:
1.We don't offer retail package,but we will pack it well before shipped out.
2.Please allow 0-1cm error due to manual measurement. plz make sure you do not mind before you buy.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
